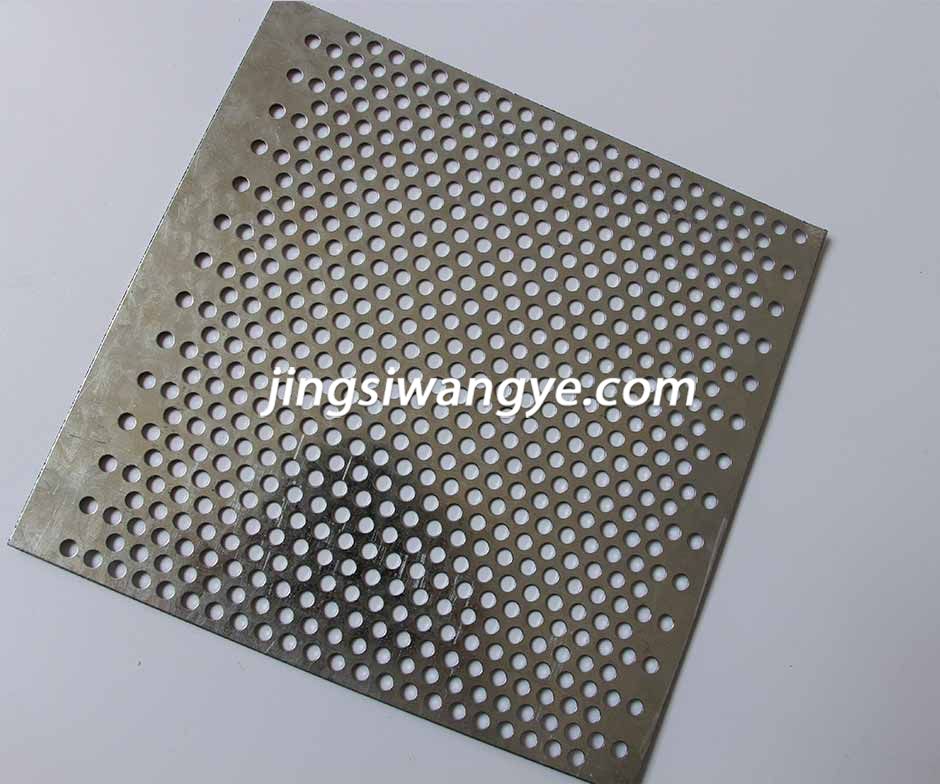

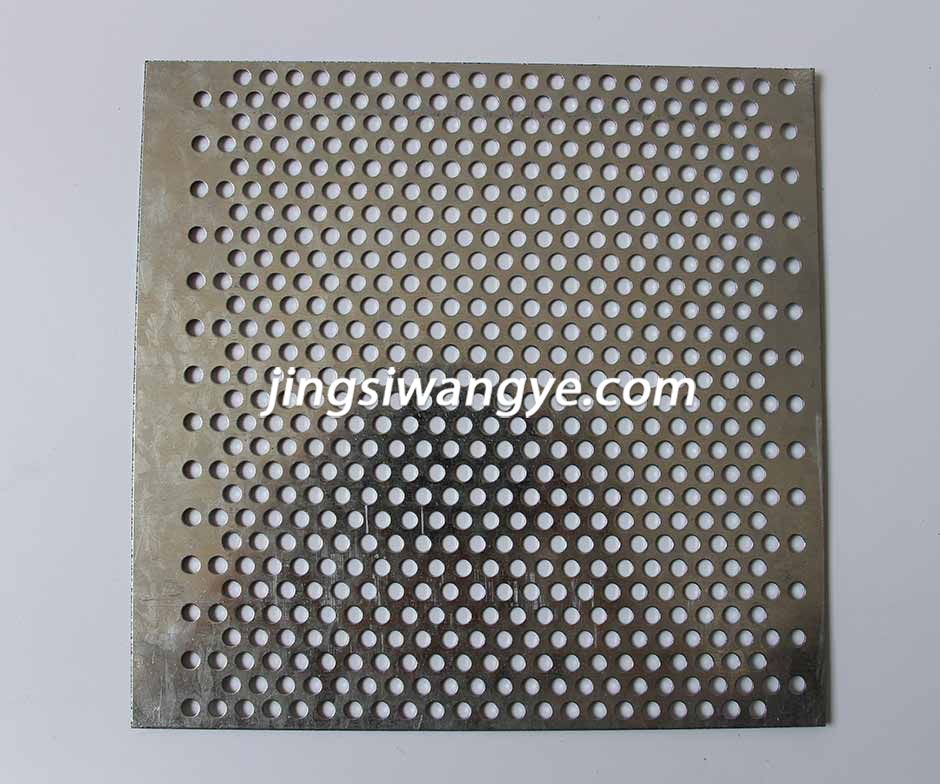

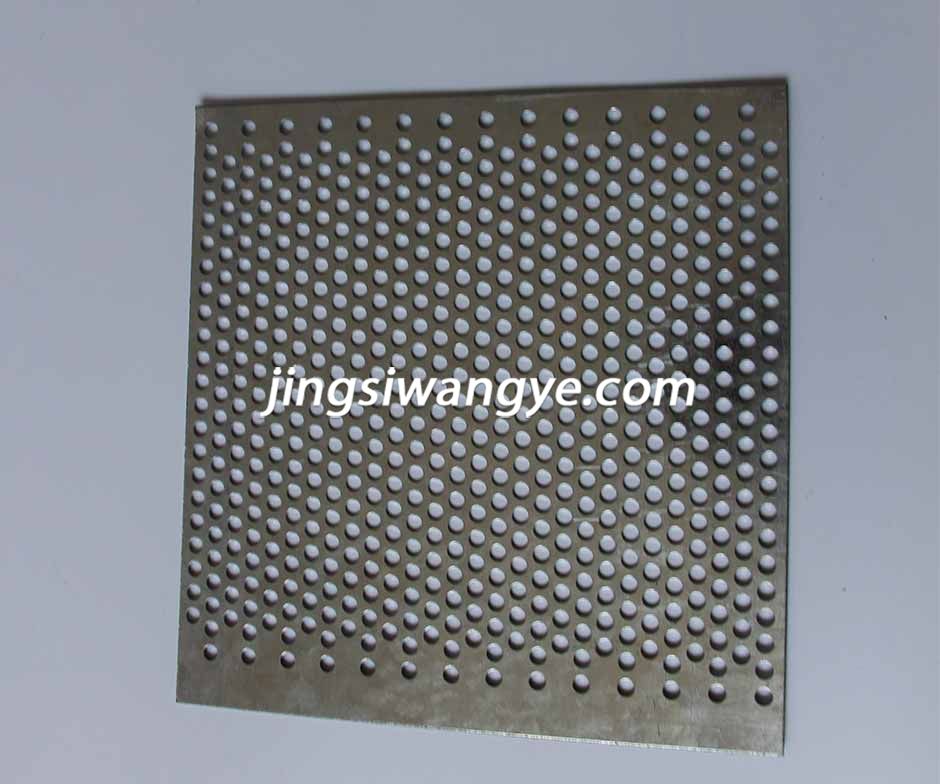

圆孔穿孔金属是最常见的一种穿孔金属。许多大大小小的圆孔都是在不同的材料上打孔，即圆孔穿孔金属，这是最常见的类型，也是最流行的。
敬思拥有圆孔穿孔金属片，适用于多种材料，包括镀锌钢、冷轧钢、热轧钢、铝、不锈钢304、不锈钢316、黄铜等，各种规格和尺寸的板材可满足您的装饰和功能需求。我们可以生产60°交错排，45°交错排，直排等定制穿孔金属。
方孔、金刚石孔、圆孔、六角孔、十字孔、三角孔、开槽孔、梅花、鳞片、五角星、不规则等。
表面光滑、抗老化、耐弯曲、耐腐蚀、耐高温、吸声性能好、经久耐用、用途广泛。
圆孔网通常用于制作电器产品的音箱、小型设备的防护罩、通风罩、原降噪系统、滤芯过滤器、罩及家具、屏蔽隔断、展台的设计与装饰。
| Code | Hole size(diameter) | Hole center | Hole type | Open area | Code | Hole size(diameter) | Hole center | Hole type | Open area |
| RHPS-1 | 0.02" | 0.043" | 45° staggered | 0.2 | RHPS-21 | 5/32" | 3/16" | 60° staggered | 0.63 |
| RHPS-2 | 0.023" | 0.042" | Straight | 0.22 | RHPS-22 | 5/32" | 1/4" | 60° staggered | 0.34 |
| RHPS-3 | 0.027" | 0.05" | Straight | 0.23 | RHPS-23 | 3/16" | 7/32" | 60° staggered | 0.67 |
| RHPS-4 | 1/32" | 1/6" | 45° staggered | 0.23 | RHPS-24 | 3/16" | 1/4" | 60° staggered | 0.5 |
| RHPS-5 | 0.033" | 0.055" | Straight | 0.28 | RHPS-25 | 3/16" | 5/16" | 60° staggered | 0.32 |
| RHPS-6 | 0.045" | 0.066" | Straight | 0.36 | RHPS-26 | 3/16" | 3/8" | 60° staggered | 0.23 |
| RHPS-7 | 0.045" | 5/64" | 45° staggered | 0.32 | RHPS-27 | 3/16" | 1/2" | Straight | 0.1 |
| RHPS-8 | 0.05" | 0.083" | Straight | 0.29 | RHPS-28 | 1/4" | 5/16" | 60° staggered | 0.58 |
| RHPS-9 | 3/64" | 3/32" | 60° staggered | 0.23 | RHPS-29 | 1/4" | 3/8" | 60° staggered | 0.42 |
| RHPS-10 | 1/16" | 3/32" | 60° staggered | 0.41 | RHPS-30 | 1/4" | 3/8" | Straight | 0.34 |
| RHPS-11 | 1/16" | 7/64" | 60° staggered | 0.27 | RHPS-31 | 1/4" | 1/2" | 60° staggered | 0.23 |
| RHPS-12 | 1/16 | 1/8" | 60° staggered | 0.23 | RHPS-32 | 1/4" | 1/2" | Straight | 0.2 |
| RHPS-13 | 5/64" | 1/8" | 60° staggered | 0.36 | RHPS-33 | 5/16" | 7/16" | 60° staggered | 0.46 |
| RHPS-14 | 3/32" | 5/32" | 60° staggered | 0.33 | RHPS-34 | 3/8" | 1/2" | 60° staggered | 0.52 |
| RHPS-15 | 3/32" | 3/16" | 60° staggered | 0.23 | RHPS-35 | 3/4" | 9/16" | 60° staggered | 0.4 |
| RHPS-16 | 0.117" | 5/32" | 60° staggered | 0.51 | RHPS-36 | 3/4" | 1" | 60° staggered | 0.51 |
| RHPS-17 | 1/8" | 3/16" | 60° staggered | 0.4 | RHPS-37 | 1/2" | 11/16" | 60° staggered | 0.49 |
| RHPS-18 | 1/8" | 7/32" | 60° staggered | 0.3 | RHPS-38 | 5/8" | 7/8" | 60° staggered | 0.46 |
| RHPS-19 | 1/8" | 1/4" | 60° staggered | 0.23 | RHPS-39 | 1" | 1-3/8" | 60° staggered | 0.48 |
| RHPS-20 | 9/64" | 3/16" | 60° staggered | 0.51 |
